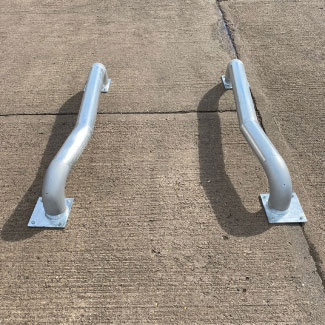

Cranked Wheel Guide

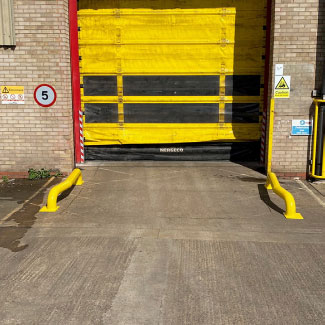

The AUTOPA Cranked HGV wheel guides provide a solid, steel kerb to allow the safe reversing into loading bays by wagons and delivery trucks. Also suitable for protecting racking, equipment and machines from potential damage caused by forklift trucks and moving vehicles.
Features

Available in 1800mm or 2500mm lengths, and 139mm or 168mm diameter. The AUTOPA cranked wheel guide is suitable for a wide range of warehouse or factory environments. Manufactured from galvanised mild steel, with the option of powder coated yellow (available extra) providing a visual and physical aid for drivers. Sold in pairs. Each pair will include 1 x left hand crank and 1 x right hand crank. Available bolt down only

Specification
  • Available bolt down only
  • 320mm height
  • Square flange plate – 250mm sq x 10mm
  • 5mm wall thickness
  • 8 x 16mm bolts required per wheel guide
  • 15° crank
Downloads

AUTOPA Cranked Wheel Guide 139 - 168
