Home / Retail / Retail External Environment / Door Guard Galvanised

Need help? Give us a call 01788 550556

Door Guard Galvanised

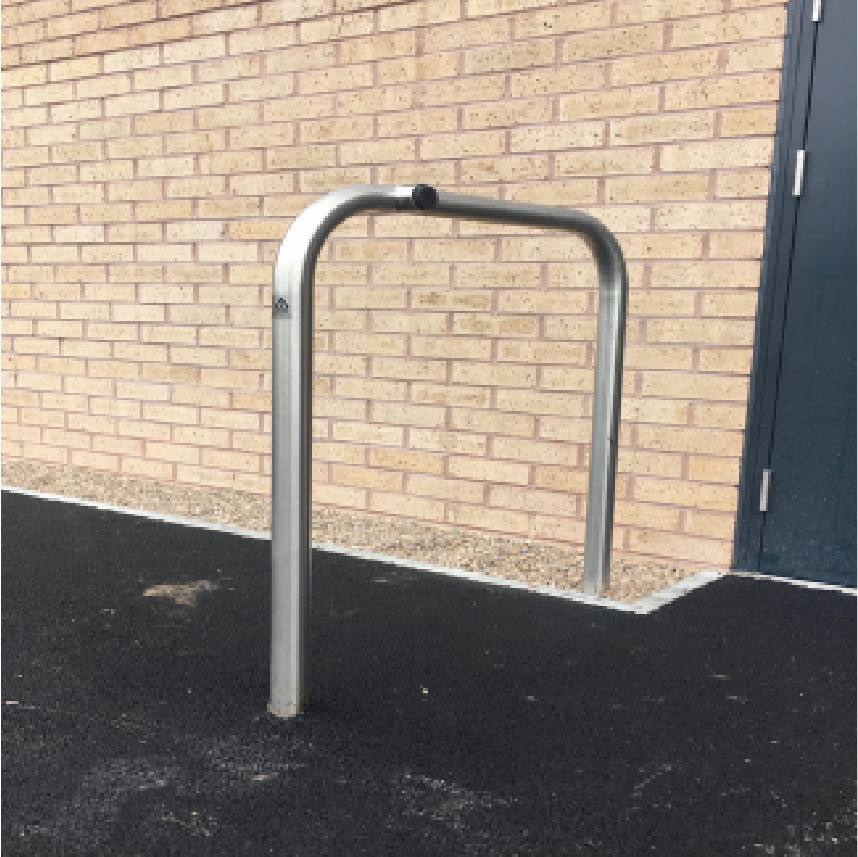

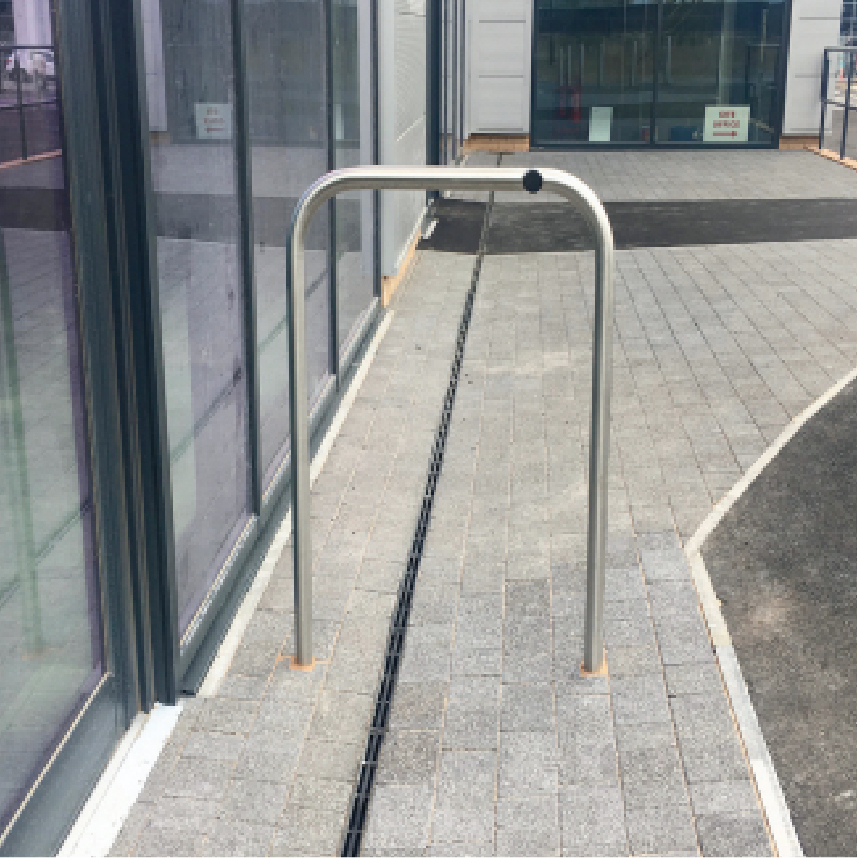

AUTOPA Door Guards are designed to protect walls from being damaged by swinging doors. An integrated rubber stopper acts as a shock absorber, preventing the door from hitting the steel frame. Ideal for commercial and industrial sites, they are suitable for internal and external use and can be installed either individually or in pairs.
Features

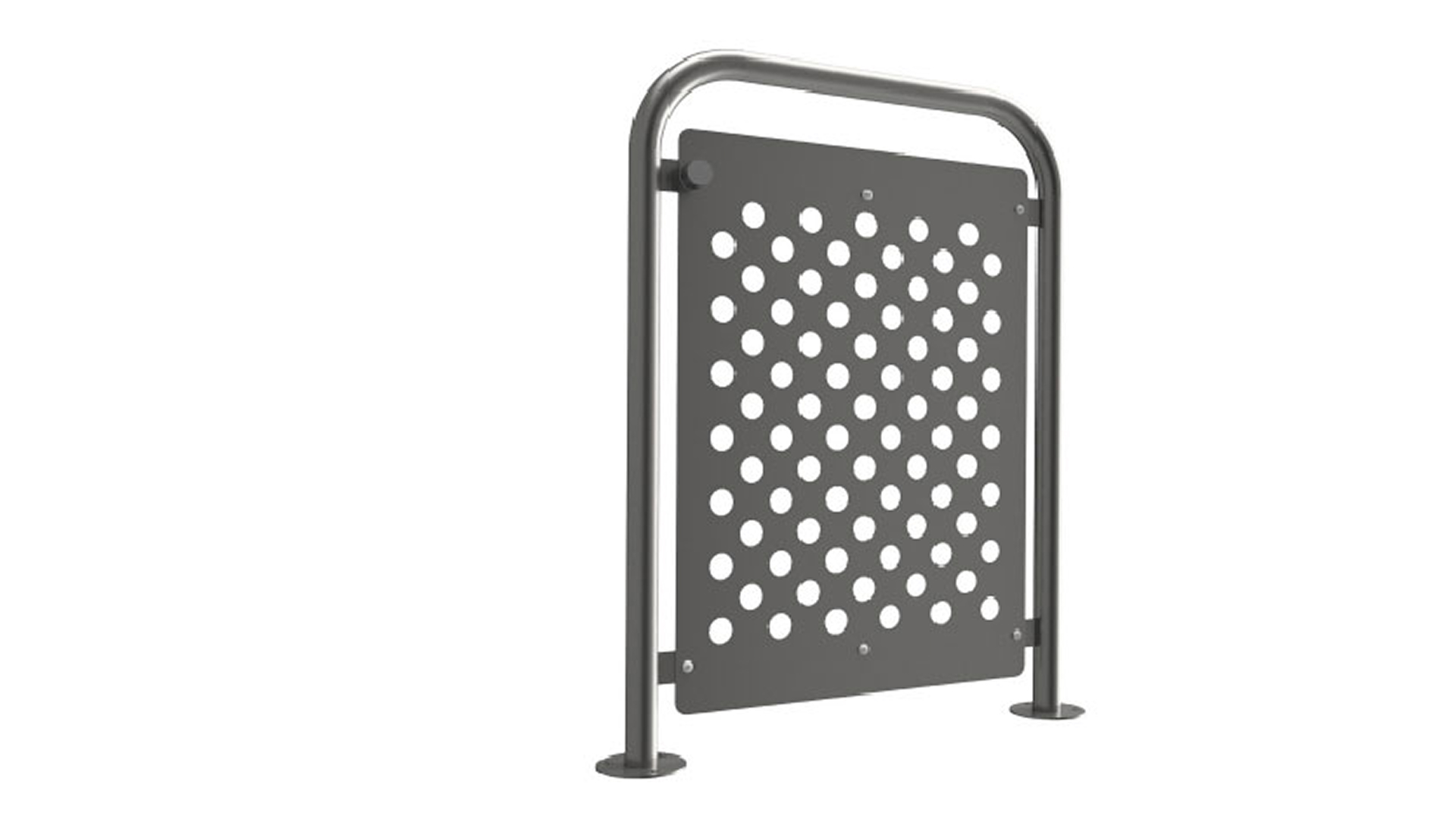

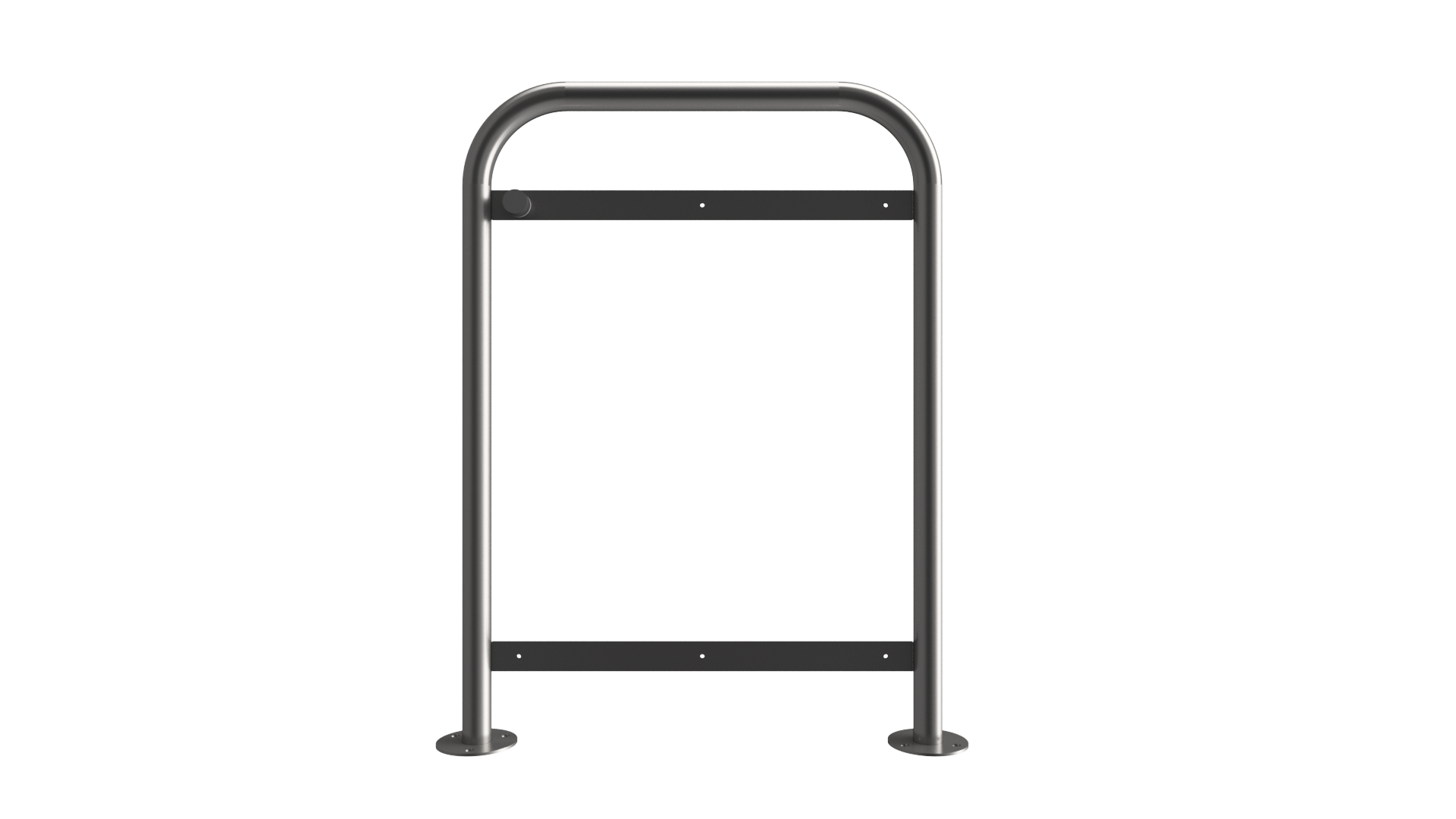

AUTOPA’s Door Guards are manufactured from galvanised mild steel and available with flange plates for bolting down or extended legs for casting into concrete. A choice of solid or perforated infill plates are available. Colour coated finishes are also available (please state BS/RAL number at time of order). Infill plates will be coated same colour as frame if colour option is chosen. The rubber stopper can be positioned in one of six places.

Specification
  • 2.5mm wall thickness (tube)
  • Round flange plate – 133mm x 5mm
  • 1100mm x 800mm (height x width)
  • 6 bolts required per door guard (bolt down)
  • Concrete in 300mm (below ground)
  • 50mm x 5mm tapping rail
Downloads

AUTOPA Door Guard Galvanised

CAD Request

Please fill in the form to request the CAD Files for this product
