Home / Cycle Control & Parking / Shelters / Cycle / MM2 Shelter – Galvanised with Clad Doors

Need help? Give us a call 01788 550556

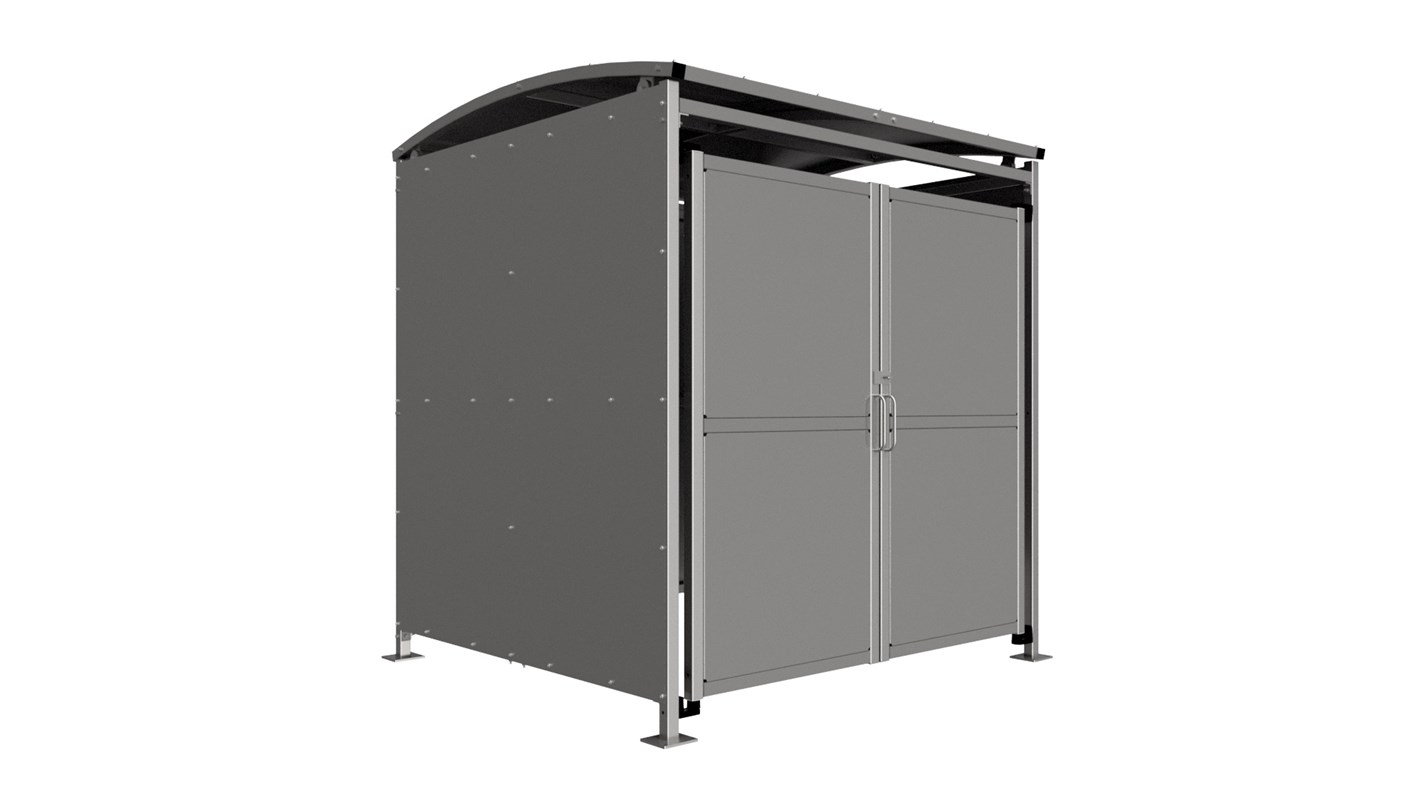

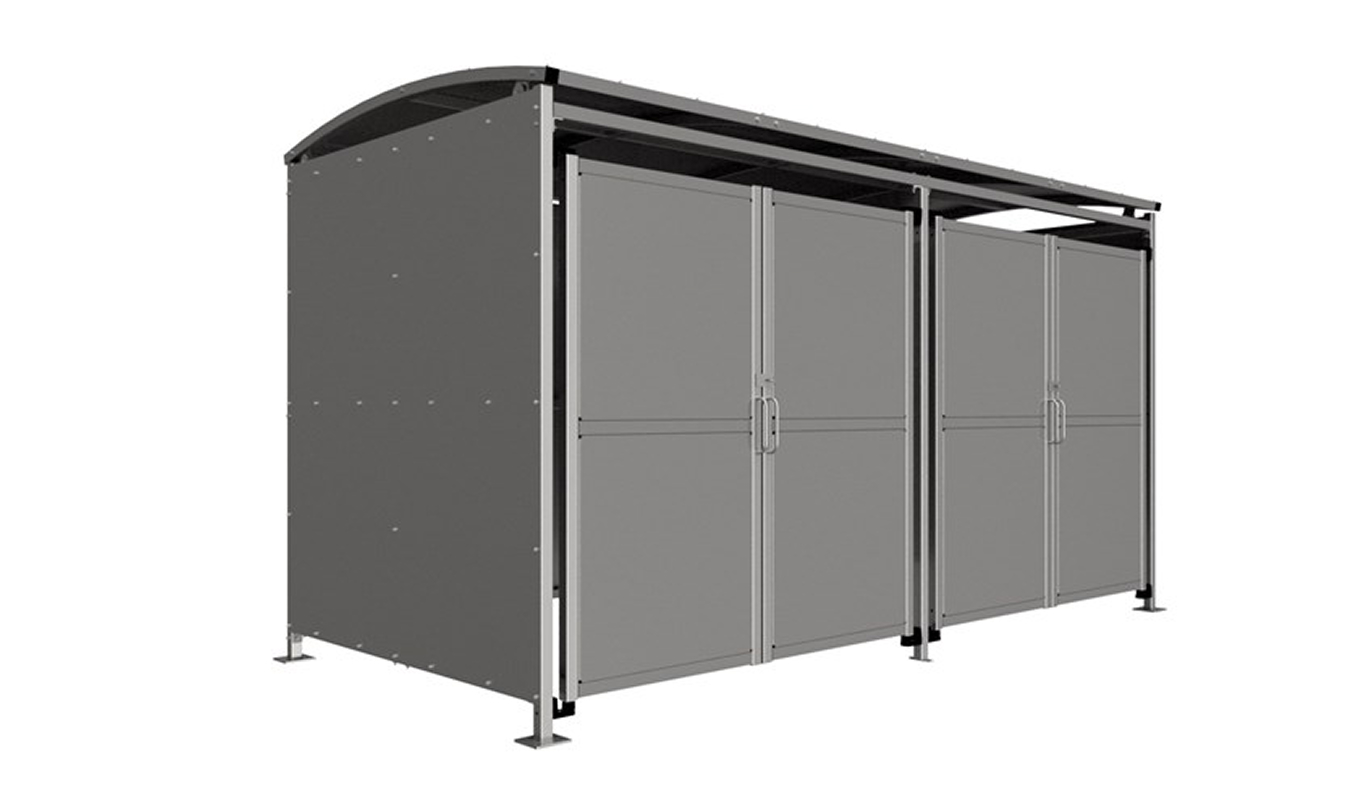

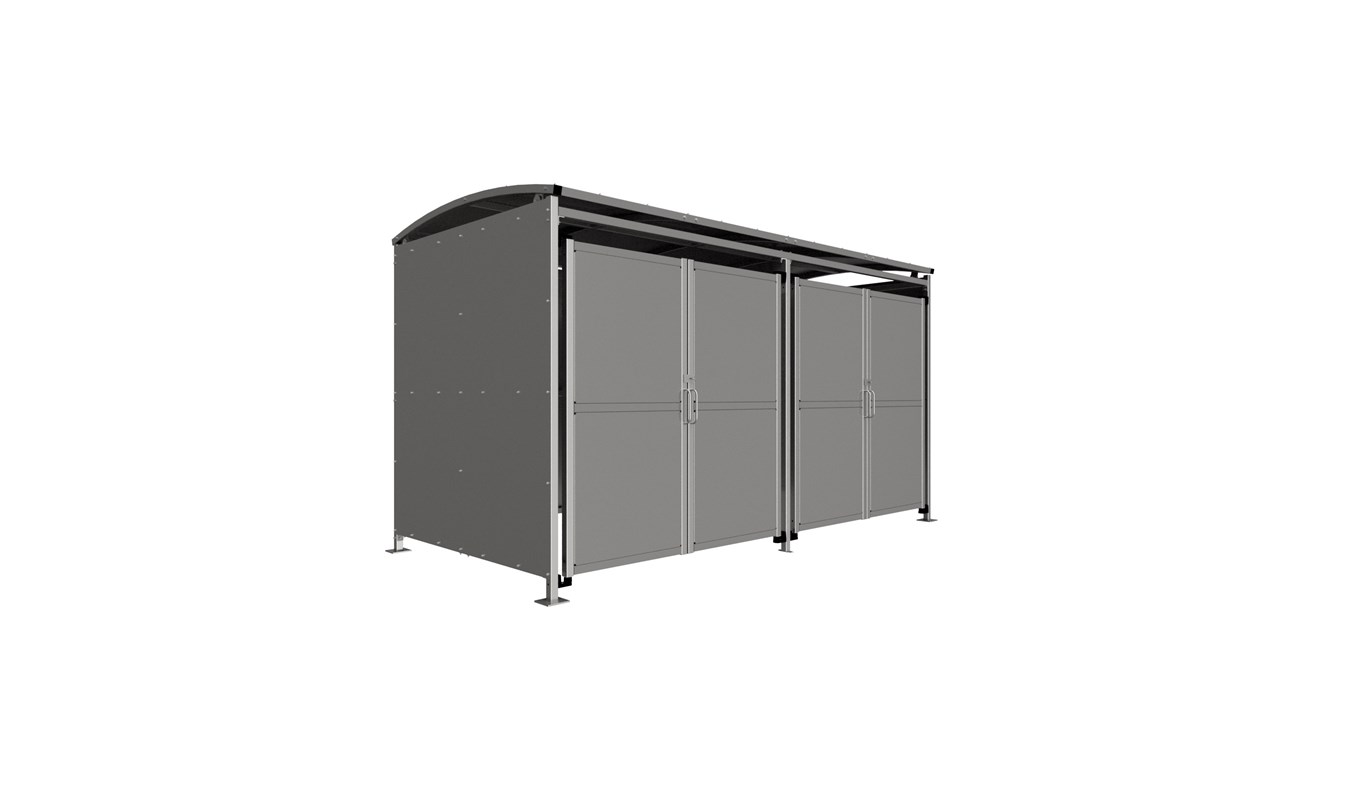

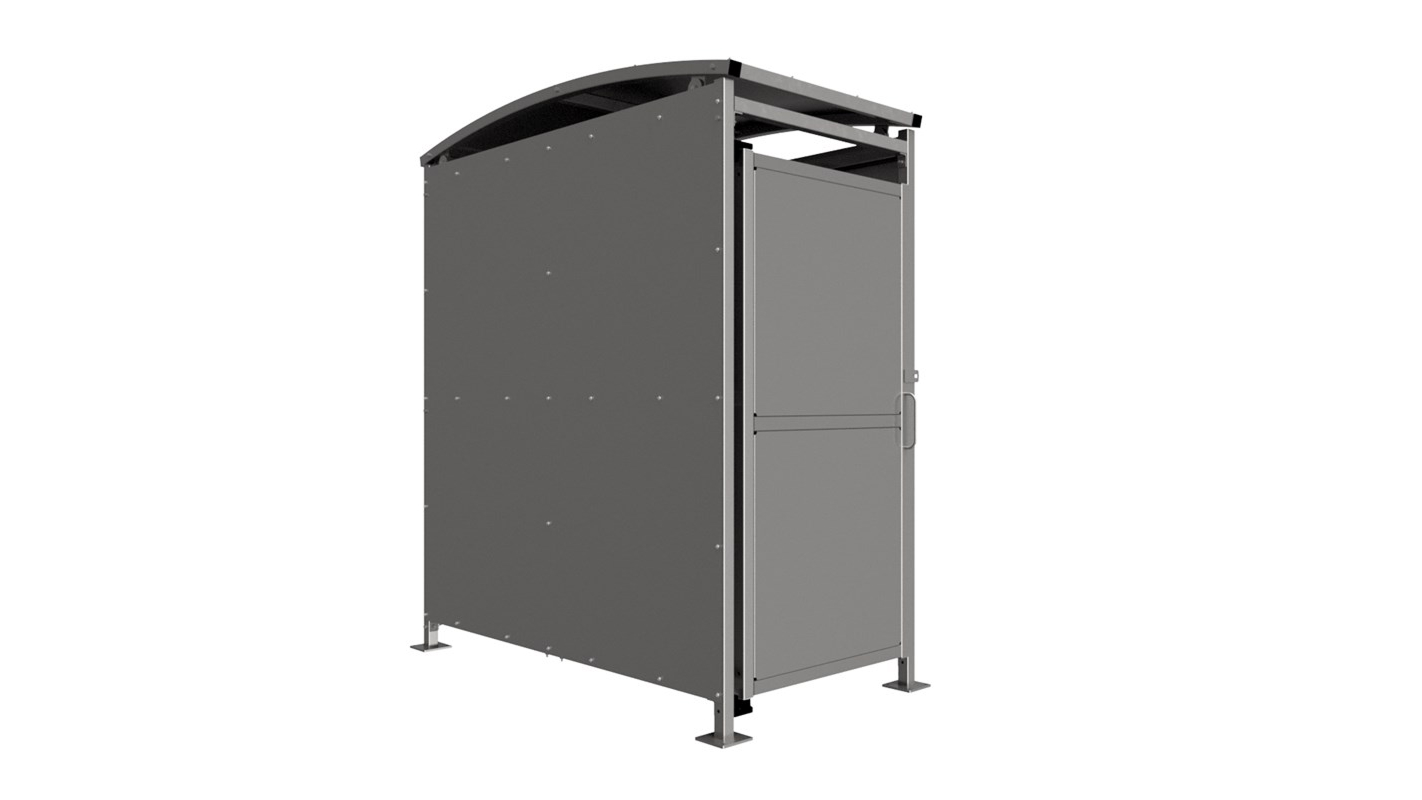

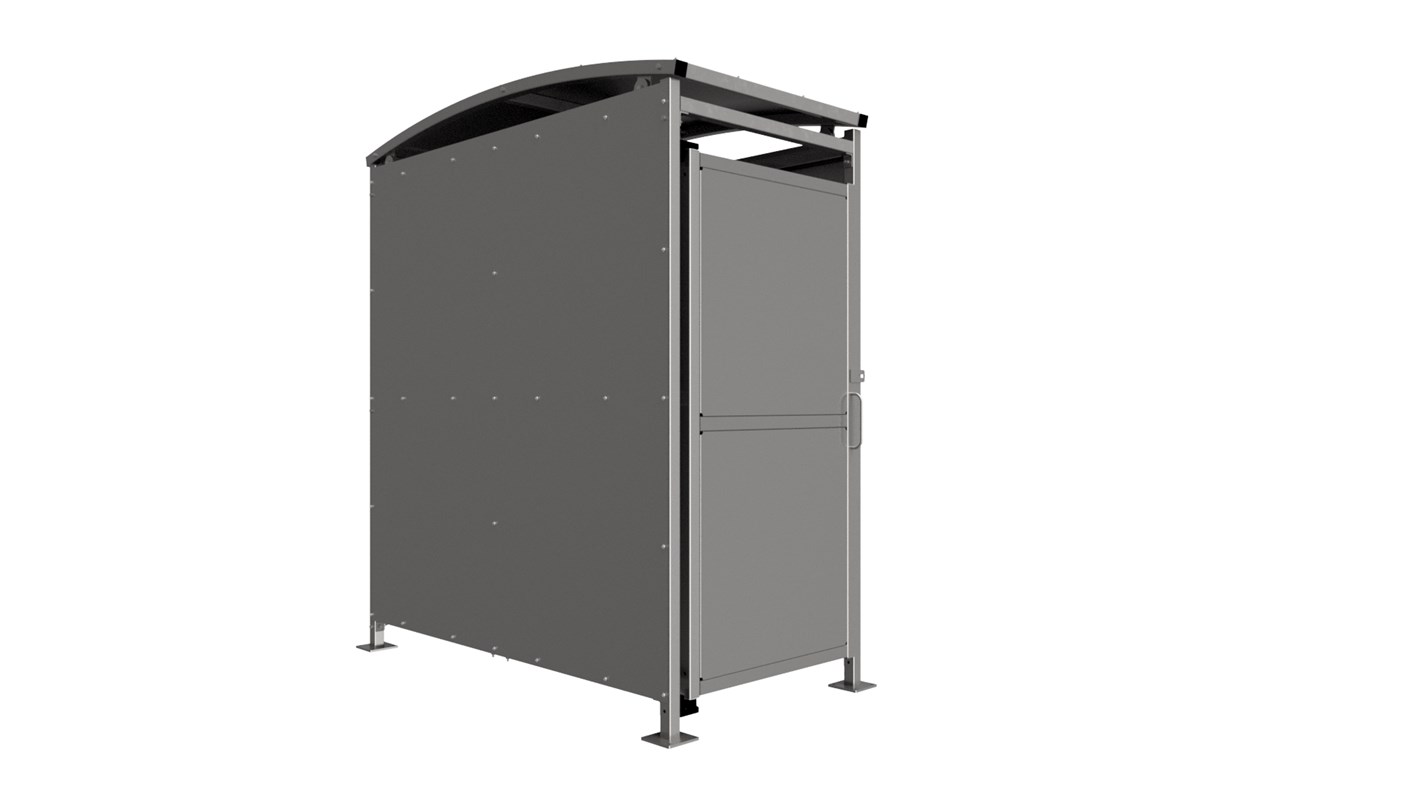

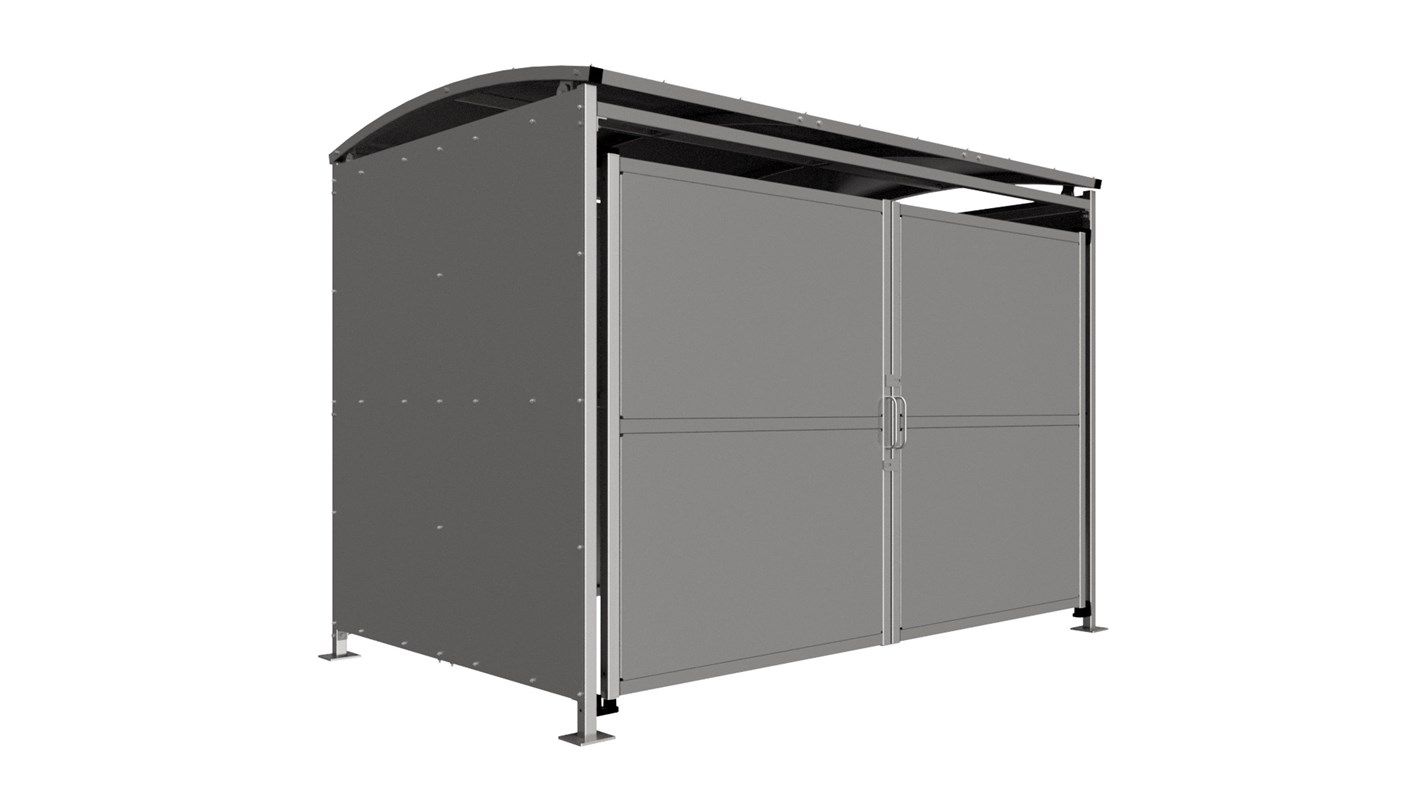

MM2 Shelter – Galvanised with Clad Doors

The MM2 variant of the Badby shelter is a free-standing shelter with Galvanised sheet clad Doors lockable by padlock (not included) designed for on site assembly, constructed from galvanised mild steel. Complete with Galvanised sheet roof, and side panels. Front-to-back curved roof.
Features

Width of 2m, with lengths from 1-5m, extension bays can be added to achieve the desired shelter length. Bolt down as standard.

Specification
  • Height – Height – 2096mm clearance, 2363mm overall
  • Width – 2099mm overall
  • Length – 1m, 2m, 3m, 4m, 5m and extensions
  • Square flange plate – 140mm x 140mm x 10mm
  • Each flange plate requires 4 bolts
  • 1mm galvanised steel panels
Downloads

AUTOPA MM2 Shelter - Galvanised with Clad Doors

CAD Request

Please fill in the form to request the CAD Files for this product
