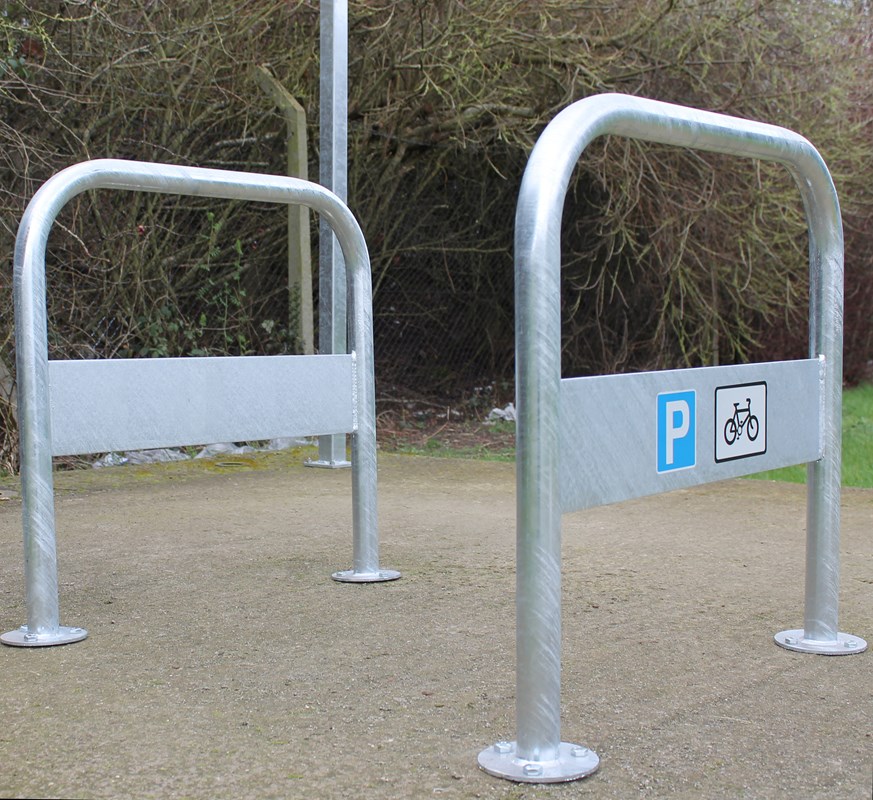

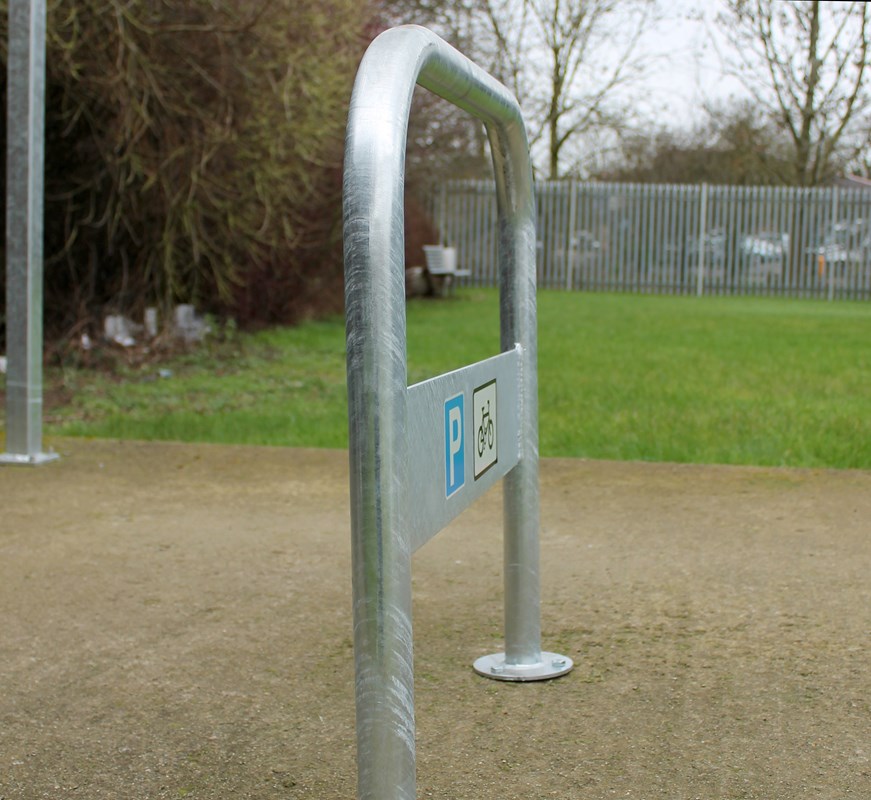

Hillmorton Cycle Stand

The Hillmorton Cycle Stand is based on the popular Sheffield Cycle Stand. A familiar sight throughout the UK, the design allows the frame and wheel of the bicycle to be secured by the cyclists own lock. Each stand is suitable for securing two bicycles at once. The Hillmorton Cycle Stand is complete with a 150mm signage plate, with the Cycle Parking ‘P’ and cycle symbol signs incorporated into the design as standard on one side only. The lower edge of the signage plate sits 350mm above the ground.

Manufactured from galvanised mild steel; this practical and durable stand is ideal for busy public areas. Supplied galvanised and ragged as standard; flanged, colour coated and stainless steel versions are also available. RAL number must be specified at time of order. Reflective tape can be added to maximise visibility.

Features

Mild steel galvanised as standard, Stainless steel grade 304 available, Available ragged for casting in to the ground or flanged for bolting down, Includes bike parking sign

Specification

750mm x 800mm (height x length)
48mm diameter tube
Round flange plate – 133mm x 5mm
Each stand requires 6 bolts (bolt down)
Concrete in 300mm (below ground)
Sign Plate – 150mm high – Symbols on one side only

Downloads

AUTOPA Hillmorton Cycle Stand

CAD Request

Please fill in the form to request the CAD Files for this product

Name

Email

Phone Number

Company

Address

Postcode

File Format

Other

Additional Information

Select your options

Finish

Fitting

Reflective Tape (additional)

RAL Colour (Standard - Galvanised)

Standard Galvanised

RAL 1021 Yellow

RAL 3020 Traffic Red

RAL 5017 Traffic Blue

RAL 6024 Traffic Green

RAL 7012 Basalt Grey

RAL 7016 Anthracite Grey

RAL 9007 Grey Aluminium

RAL 9005 Jet Black

RAL 9010 Pure White

Coloured products are nonrefundable

Hillmorton Cycle Stand quantity
